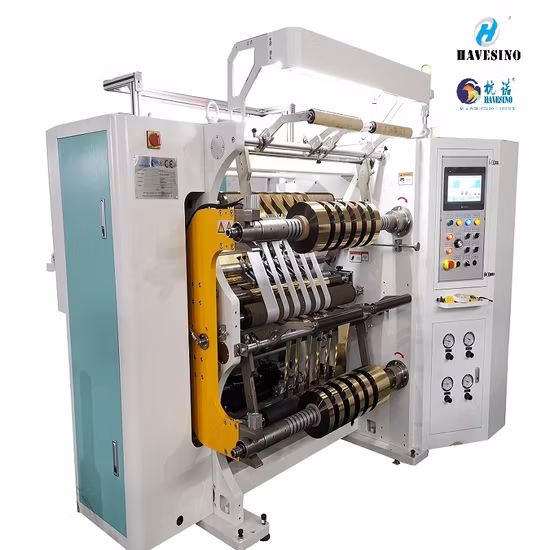

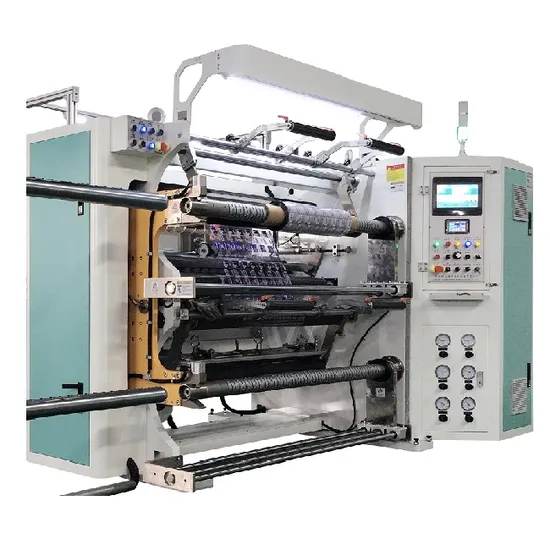

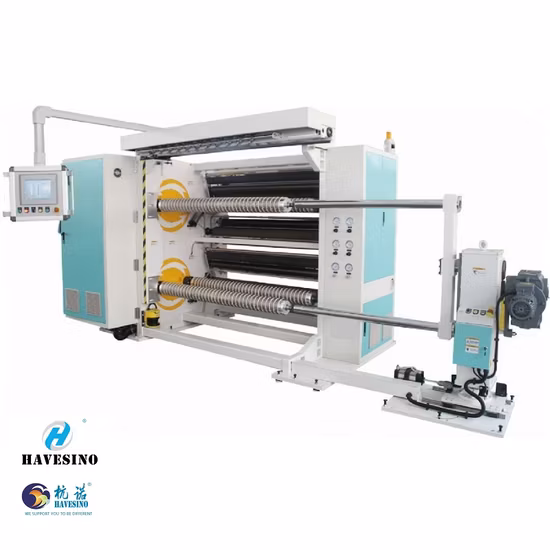

China Leading Manufacturer Hot Stamping Foil Slitting Rewinding Slitter and Rewinder Machine
HN1300 Hot Stamping Foil SLITTING MACHINE NEW GENERATION Automatic Tenstion ControlAutomatic Unloading FunctionAutomatic
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | HN 1300HSF |
Packaging | Case |
Classification | Film Slitting |
Applicable Process | Final Inspection |
Suitable Substrates | Film Cutting |
Packaging Material | Exporting Wooden Box |
PLC | Mitsubish |
Rewinding Shaft | Slipping Air Shaft |
Mini Slitting Width | 30mm |
Servo Motor | Taiwang |
Tension Control | Automatic |
Blade | Shavor Blade |
Slitting Width | 1300mm |
Speed | 500m/Min |
Transport Package | Standard Exporting Wooden Box |
Specification | 1300mm |
Trademark | HAVESINO |
Origin | China |
HS Code | 8441100000 |
Production Capacity | 20PC/Month |
Product Description

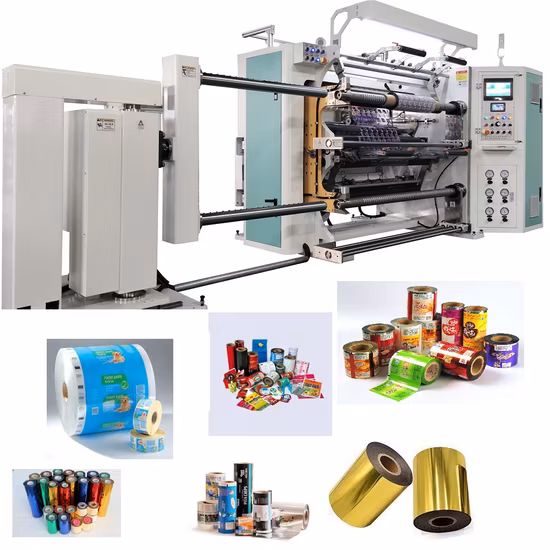

HN1300 Hot Stamping Foil SLITTING MACHINE NEW GENERATION Automatic Tenstion ControlAutomatic Unloading FunctionAutomatic Unloading Turret Frame12 Years History Stable Model of SlitterUsed by More than 85 Countries and 800 pcs Around the World SlitterFree Installing Quick Working and Easy Operation SlitterFilm/Foil/Non-Woven/Label/Lamination Material Slitter RewinderAPPLICATION A. 12-180um HOT STAMPING FOIL,COLDING FOIL,HOLOGRAPHIC FOILS,METALIZED FOIL and so on B. 12-180um PRIMARY FILM (BOPP,PVC,LDPE,PET,SINGLE SILICON FILM and so on) C. 12-180um LAMINATES (FILM to FILM,FILM TO FOIL,FILM TO PAPER and so on) D. Non-Woven FABRIC E. 40-80gram PAPER/LABEL/ADHESIVE LABEL F. 20-40UM ALUMINUM FOIL AND OTHER MATERIAL (PlS CHECK WITH THE SALES MANAGER)
BASIC INFORMATION
1 | SLITTING WIDTH | 300mm-1300MM |
2 | SLITTING THICKNESS | 12-250UM |
3 | UNWIND DIA. | MAX1000MM |
4 | UNWIND CORE I.D. | SHAFTLESS 3 INCH AND 6 INCH |
5 | REWINDING DIA. | MAX 600MM |
6 | REWINDING WIDTH | MINI 30MM |
7 | REWINDING CORE I.D | 3 INCH SLIPPING AIR SHAFT |
8 | SLITTING UNIT | RAZOR BLADE EACH 10 PCS |
SHEAR CIRCLE BLADE 10 PCS | ||
9 | MECHANICAL SPEED | MAX550M/MIN |
10 | WORKING SPEED | MAX500M/MIN |
11 | MACHINE FRAME THICKNESS: | 50MM |
12 | METER COUNTER: | METER COUNTER |
13 | WASTE EDGE UNIT: | AIR BLOWER |
14 | POWER SOURCE | 380V,3 PHASE 4 WIRES,50Hz |
15 | PNEUMATIC SOURCE | 0.8MPA |
16 | LASER POSITIONING | 10 PCS |
17 | WITH AUTO UNLOADING FUNCTION FOR FINISHED ROLL | |
18 | MACHINE SIZE (REF. ONLY): | 2950mm(not including unloading frame tree)×2550mm×1970mm |
19 | 4590mm(including the unloading frame tree)×2550mm×1970mm | |
20 | FLOOR SPACE(REF.ONLY): | 4200MM*3300MM |
21 | N.W/G.W (REF. ONLY): | 3000/3500 |
FUNCTIONAL DESCRIPITION Rewinding: 1 3 INCH SLIPPING FRICTION AIR SHAFT to ensure the rewinding tension stable; 2 Full width pressing rollers by air control to ensure the finished roll surface keep smooth;3 Anti Stati Remove Brush for both up and down rewinding press roller 4 Small indiviual press roller specially designed for the individual roll which not average thickness 5 Manual laser core position units help to set paper/plastic cores easily and quickly, begin next slit run with very short downtime.6 Automatic tension control to ensure the rewinding tension stable. Unwinding: 1 Magnetic Brake with load cell close loop system for unwind tension control; 2 3 inch and 6 inch shaftless uwinding system, easily change the jumbo roll;3 Hydraulic lifting system to help the operator loading the jumbo roll max. 1 ton from floor; 4 Material splice table, easy change and guarantee edge consistency ;5 EPC ultrasonic edge guider to avoid the influnce from shinning materia which reflect light back;6 Back Control Button & Screen Display make the operator easily control the slitter at back side;3 SECURITY GRAVITY CARPET to ensure the safty of the operator; Blade Unit: 1 Shavor or Razor blade setting easily setting by wrench losing and fixing, very quick and easy;2 Shear Circle Blade slit for all kind of material stable slitting at high speed. Unloading: 1 AUTO VERTICAL ROLL UNLOADING DEVICE not only can move horizontally and parallelly,make finished roll unloading much easier than before; 2 Auto unloading function to avoid manual hand push, save time and energy of operator. GUARANTEE AND SERVICE
1 100% Test and Check Before Shipment.
2 Detailed Instruction Manual.
3 Two Year Guarantee for All Key Parts.
4 7×24Hours Online Service
5 Installing and Operator Training Service Provided.
6 Whole-Life Free Technical Support.
7 Regular On-Site Routine Inspection.
RECOMMENDED PRODUCT
About HavesinoHAVESINO is one of top suppliers for Semi Automatic and Fully Automatic thermal paper slitter re-winders and converting machinery for more than 12 years. We have in excess of hundreds of machine installations all around the world!HAVESINO is one of the leaders in design, developing and building of quality,high performance of thermal paper slitter re-winders and the support machine such as core loader, core-less machine and fully automatic packing lines.
Our History
CertificatesOur Customers
Related Products
-
Paper Core Cutting Machine 2000mm Fully Automatic Shaftless Paper Core Cutting Machine Plastic Core Paper Pipe Paper Tube Cutting Machine PVC PPR Core Cutter
-
Optional Engine OEM Road Diamond Circular Saw Cutter
-

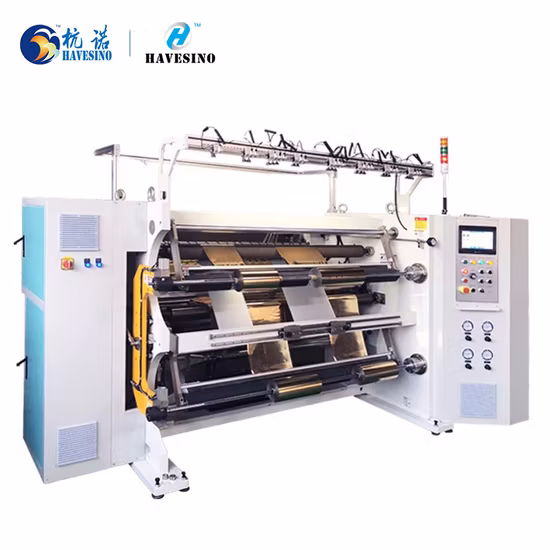

Ppc Flexible Packaging Slitter Rewinder
-
